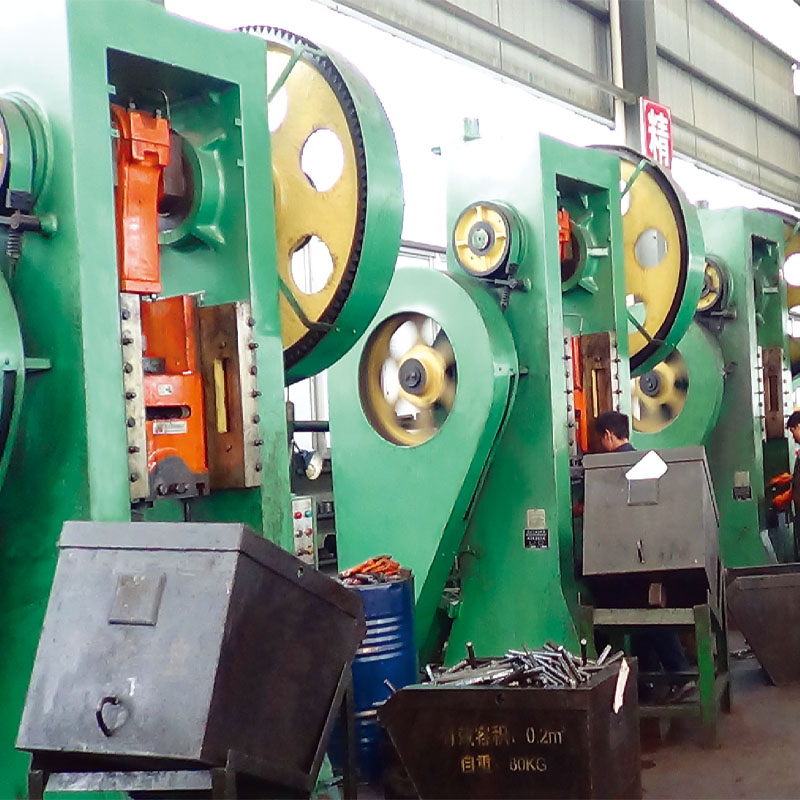

J31 SERIES CLOSED SINGLE POINT PRESS

1.The fuselage adopts the linear design of steel plate welding structure, with balanced stress and good rigidity;

2.Large die space, four side guide slider, good stability, high precision, can effectively protect the mold, so that mold life growth;

3.It has the versatility of deep drawing, strong blanking and extrusion;

4.Adopt rigid rotary key cl utch and collapse type overload protector.

Contact Now E-Mail Telephone

Product Details

J31 SERIES CLOSED SINGLE POINT PRESS

Specifications		Unit	J31-100	J31-125	J31-160	J31-200	J31-250	J31-315	J31-400	J31-500
Nominal Capacity		KN	1000	1250	1600	2000	2500	3150	4000	5000
Nominal Pressure stroke		mm	10	10	11	12	12	13	13	13
Stroke of Slide		mm	180	210	210	210	210	180	180	180
Strokes per Minute		次/分	35	35	32	32	32	30	30	30
Max die height		mm	260	295	370	330	520	500	500	500
Die height adjustment		mm	100	100	100	100	100	100	100	100
Table Size	Front-Back	mm	650	690	710	850	850	900	900	900
	Right-Left		625	650	680	700	700	1350	1350	1350
	Hole Diameter		φ180	φ180	φ320	φ300	φ300	φ300	φ300	300
	Thickness		90	100	100	140	140	180	180	180
Slider Bottom Size	Front-Back	mm	365	365	400	570	570	600	600	600
Slider Bottom Size	Right-Left	mm	380	405	420	540	540	700	700	700
Shankhole Size	Diameter	mm	φ65	φ65	φ75	φ75	φ75	φ70	φ70	φ70
Shankhole Size	Depth	mm	110	110	120	120	120	115	115	115
Distance between Columns		mm	660	680	710	720	720	830	770	720
The tie rod hole distance/size			430/M24	450/M24	540/M30	560/M30	560/M30	700/M30	700/M30	700/M30
Electromotor	Model		Y-160M-6	Y160M-6	Y180L-6	Y180L-4	Y200L-4	Y225M-6	Y225S-4	Y225M-4
Electromotor	Power	KW	7.5	7.5	15	22	30	30	37	45
Overall dimensions	Front-Back	mm	1450	1850	1780	1900	2200	3050	3100	3100
	Right-Left		1670	1720	1980	2200	2350	2250	2250	2250
	Height		2845	3120	3200	3370	3640	3955	4100	4200
Mould adjustment mode			Manual tuning	Manual tuning	Manual tuning	Manual tuning	Manual tuning	Electric mold adjustment	Electric mold adjustment	Electric mold adjustment
From the brake mode			Rigid clutch	Rigid clutch	Rigid clutch	Rigid clutch	Rigid clutch	Rigid clutch	Rigid clutch	Rigid clutch
Weight(About)		KG	5800	6500	8600	12500	14800	21500	23500	26000
