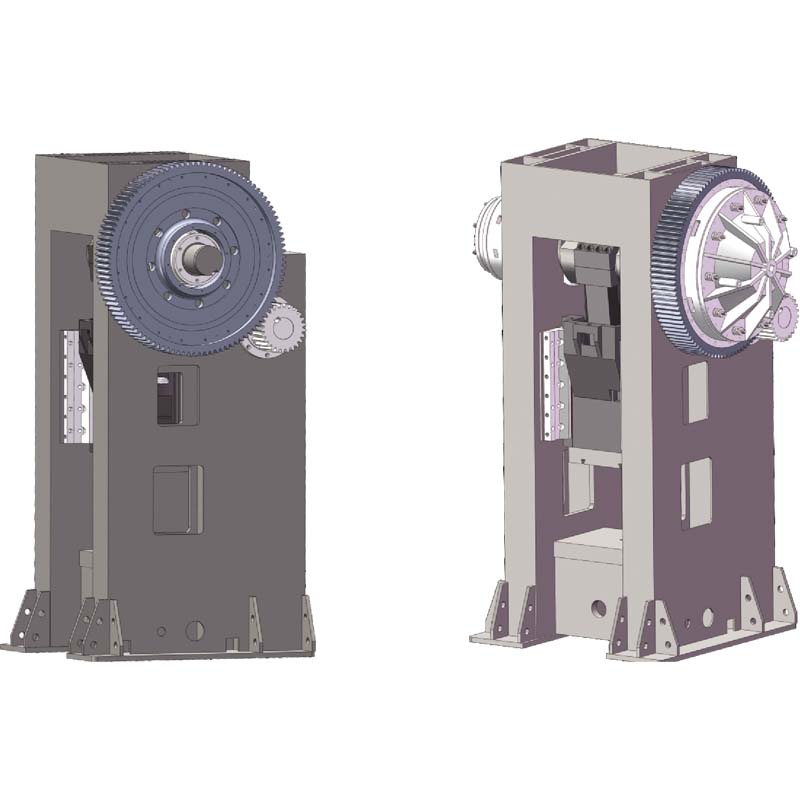

VFG SERIES SINGLE STATION PRECISION HEAVY WARM FORGING MACHINE

The frame is of steel plate box type welding structure, and has been heat treated to eliminate the internal stress of the body.

　　The sliding block is designed with eight sided guide rail, which has good guidance and high precision.

Electric mold adjustment, simple operation, large amount of slider adjustment.

　　The crankshaft is horizontally placed, with larger speed ratio of big and small gears, which can output greater torque. Automatic oil dripping lubrication reduces noise and improves service life.

　　The company's self-developed cl utch and brake devices are used to ensure stability and safety.

　　It has the functions of lubrication detection, fault display, crankshaft angle inspection and system operation status display.

With the support of humanized interface, the operation is simple and convenient.

Contact Now E-Mail Telephone

Product Details

VFG SERIES SINGLE STATION PRECISION HEAVY WARM FORGING MACHINE

parameter	Unit	VFG-400	VFG-600	VFG-800	VFG-1000	VFG-1300	VFG-1600
Ability	Tons	400	600	800	1000	1300	1600
Slider stroke	mm	250	250	300	300	300	300
Slide Adjustment	mm	60	60	60	60	60	60
Number of trips	Spm	60	50	50	40	40	40
Maximum clamping height	mm	600	600	700	800	800	850
Slider bottom panel	mm	900x750	900x750	900x800	1200x950	1250x1060	1400x1200
Table panel	mm	900x900	900x900	1120x980	1240x1200	1250x1250	1400x1300
Main motor	Kw×p	45	55	75	110	110	132
Loading and jacking capacity-stroke	Tons-mm	6x30	6x30	6x30	6x30	10x30	10x30
Feeding and jacking capacity-stroke	Tons-mm	10x50	10x50	10x50	20x50	20x50	20x50
