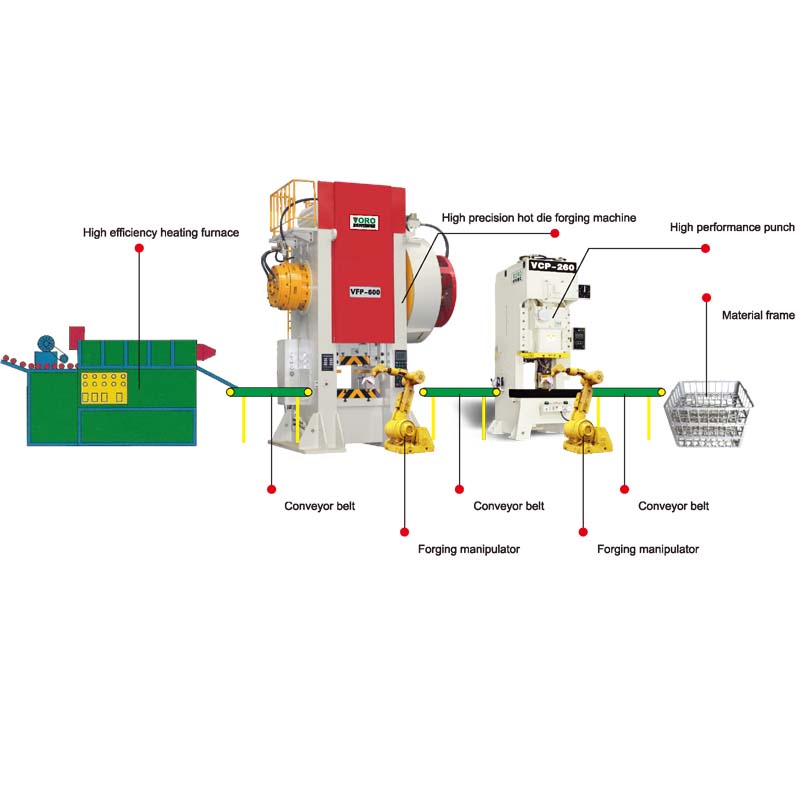

VFP SERIES HIGH-SPEED MULTI STATION PRECISION HEAVY WARM FORGING MACHINE (PRIMARY DRIVE)

Features

This machine is used for die forging and finishing forgings of a large number of ferrous metals in batches. The forged forgings have high precision, high utilization rate of materials, high productivity, easy automation, low technical requirements for workers' operation, low noise and vibration, etc. Therefore, it is increasingly widely used in modern forging production, and is an indispensable high-precision forging equipment for modern intelligent forging production.

Contact Now E-Mail Telephone

Product Details

Technical parameter	Unit	VFP-600	VFP-600W	VFP-800	VFP-800W	VFP-1000	VFP-1000W
ability	Tons	600	600	800	800	1000	1000
Slider stroke	mm	175	200	200	250	250	250
Slide Adjustment	mm	10	10	10	10	10	12
Number of trips	Spm	100	95	95	85	85	85
Number of effective working trips	Spm	18	18	18	16	16	16
Maximum clamping height	mm	555	555	695	695	755	755
Capability occurrence point	mm	5	5	5	5	5	5
Slider bottom area	mm	755×640	780×700	780×700	920×800	920×800	980×860
Table panel area	mm	950×770	1010×900	1010×900	1120×980	1120×980	1190×1050
Main motor	Kw×p	37kw×8p	37kw×8p	45kw×8p	45kw×8p	55kw×8p	55kw×

VFP-1300	VFP-1300W	VFP-1600	VFP-1600W	VFP-2000	VFP-2000W	VFP-2500	VFP-2500W
1300	1300	1600	1600	2000	2000	2500	2500
250	300	300	300	300	300	300	350
12	15	15	15	15	15	15	15
85	80	80	75	60	75	75	75
16	16	16	16	16	16	16	16
845	845	915	915	915	915	915	915
5	6	6	7	7	7	7	7
980×860	1100×1000	1100×1000	1250×1100	1110×1200	1250×1100	1350×1100	1350×1100
1190×1050	1340×1100	1340×1100	1440×1200	1300×1300	1440×1200	1540×1200	1750×1300
90kw×8p	90kw×8p	110kw×8p	132kw×8p	160kw×8p	160kw×8p	185kw×8p	185kw×8p
