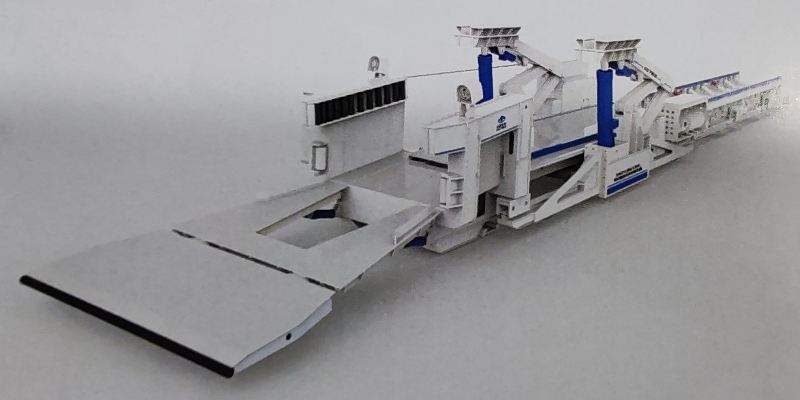

Belt Conveyor Self-moving Tail

Technical features:

1. A moving step of the machine is 2 m or 1.5 m. By adjusting the number of rigid frames, the effective feeding distance between the machine and the belt reversed loader can be adjusted, so as to meet the requirement of one-day footage without belt, reduce labor intensity, and achieve rapid self-movement.

2. The machine and the belt reversed loader adopt the overlapping lap connection method, which reduces the width of the system; The rigid frame of the machine is equipped with pin-row rails, and the belt reversed loader can travel and unwind on the rails by using the pin-tooth driving principle of shearer.

3. The stabilizing bracket adopts an upright structure, which greatly meets the attachment requirements of traction.

4. Wireless transmission of data is adopted between the whole machine and the self-moving power station, crushing reversed loader, and flexible belt conveyor, and each equipment has a linkage function;

5. Use the oil cylinder to pull the end and the rigid frame to move. The lift arm plus rail mechanism is used to push the rigid frame, which reduces the resistance of moving the frame. The whole machine has remote control function.

DWZY1000 series belt conveyor with self-moving tail is used for coal seam thickness ≥3500 mm, slope ±3° fast tunnelling transport equipment, used for the matching connection of roadway reversed loader and the stage belt conveyor, with functions such as self-moving and deviation adjustment, to meet the needs of fast tunnelling work face is required to be high-yield and efficient. lt can be matched with a belt conveyor with a belt width of 1 m. The belt conveyor is required to have the function of automatically tensioning the belt.
