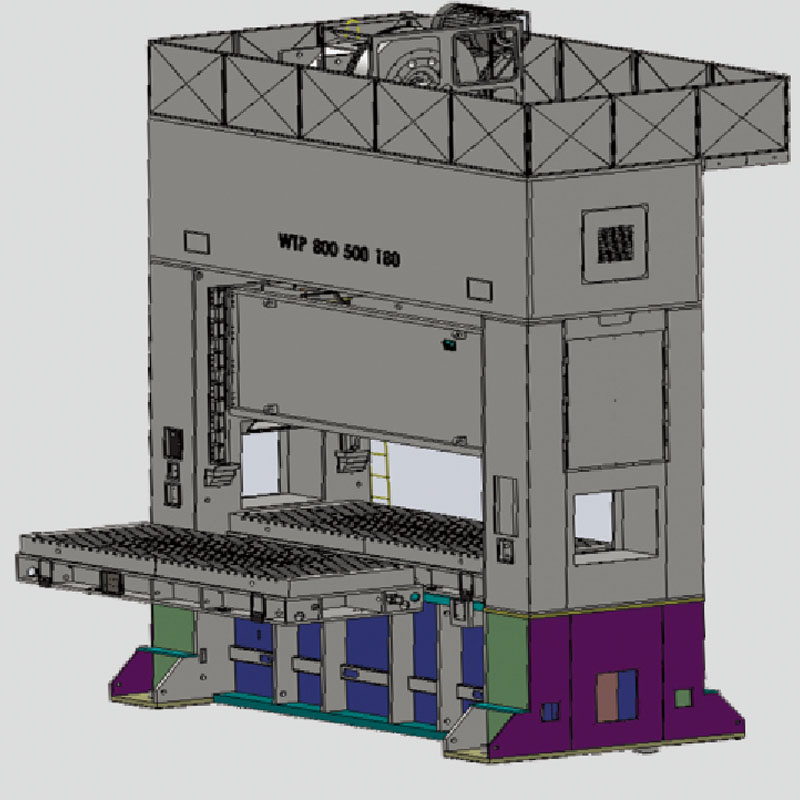

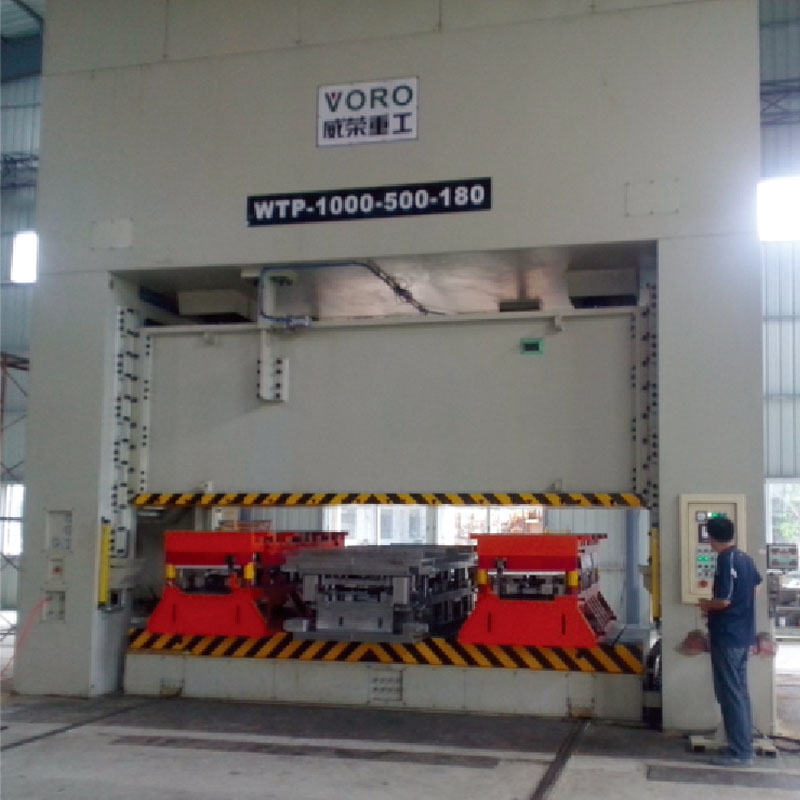

WTP-200/1000T SERIES CLOSED DOUBLE AXIS PRECISION STEEL FRAME PUNCH

The transmission components adopt forced circulation lubrication system to prolong the service life of parts.
The mobile trolley can save time and labor when exchanging moulds. Various mobile trolleys can be selected according to the customer's workshop layout requirements.
The high-preci sion lengthened 8-sided slider guide way has a wear-resistant surface. The clearance adjustment is simple and easy, and the maintenance is convenient. The guide way position is lubricated by forced circulation oil supply.

Contact Now E-Mail Telephone

Product Details

Specification	单位	WTP-200		WTP-300		WTP-400
Capacity	Ton	200		300		400
Rated Tonnage Point(above B. D. C)	mm	5	7	7	9	7	9
Stroke length	mm	150	300	250	350	300	400
Stroke per minute	spm	30-70	20-30	30-50	20-30	20-40	20-30
Die height(S. D. A. U)	mm	450	500	550	650	600	700
Maximum counterbalance capacity (空气压5kg/cm²)	kg	2000		2500		4000
Slide adjustment	mm	125		150		150
Slide area(L. R×F. R)	mm	1650×1100	1850×1100	2000×1200	2350×1300	2500×1300	3400×1400
Bolster area(L. R×F. R)	mm	1800×1200	2000×1200	2150×1300	2500×1400	2700×1300	3400×1400
Bolster thickness	mm	150		180		200
Slide opening	BxH	550×450	550×500	650×600	650×700	650×600	800×700
Height of the top surface of bed from	mm	950		950		950
Main motor	HPxP	22×4		37×4		45×4
>Slide adjusting motor	KwxP	1.5×4		2.2×4		3.7×4
Frame structure		Integrated		Trisection/Integrated		Trisection/Integrated
