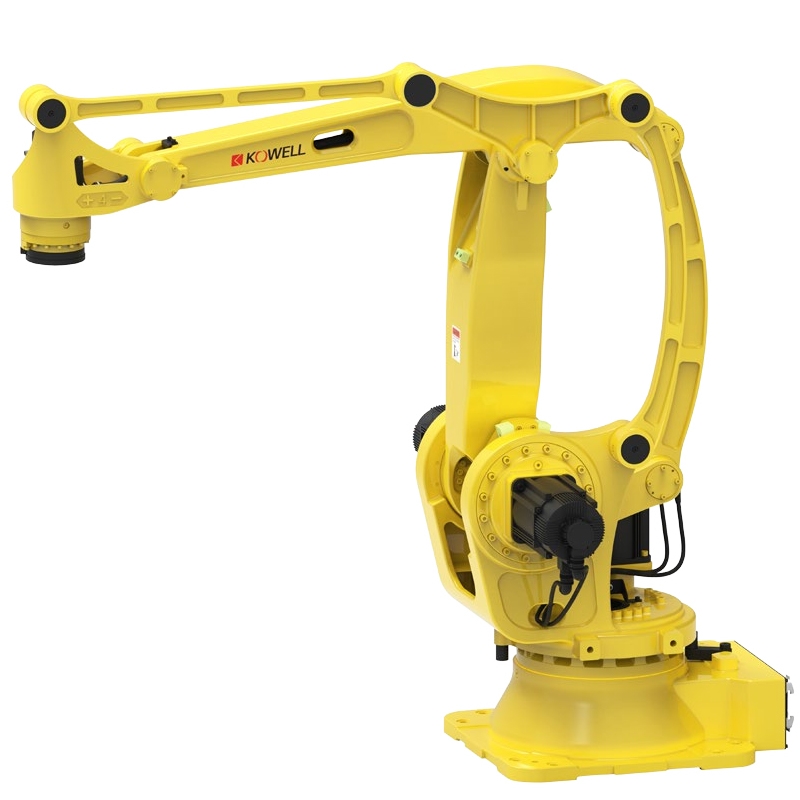

KW1120M-2400 is a medium to large load robot,The wrist can handle a load of 120kg and can work up to a radius of 2400mm
Functional characteristics
Thanks to its high nigidity structure and high-speed inteligent palletizing process package, the eficiency has been improved by20%, helping customers complete their work more quickly, efficiently, and economically;intearating multiple industry-specific process packages, combined with sof PlCs and varous bus interfaces, to help customerseasily face various process challenges;
The high-performance collision detection function helps improve safety factors.
Applicable scenarios
It can be widely used in scenaros such as handling, palletizing, loading and unloading.
Applicable industries
Industries such as automotive parts, photovoltaic, food and beverage, building materials, logistics and warehousing.
| 型 号 Model | KW1120M-2400 | 动作范围 Action range | 基本轴 Basic axis | J1 | ±180° | |||||||||||||||||||
| 类 型 type | 垂直关节4自由度 Vertical joint with 4 degrees of freedom | J2 | +45°-85° | |||||||||||||||||||||
| J3 | +20°-120° | |||||||||||||||||||||||
| 有效负载 Payload | 120KG | |||||||||||||||||||||||
| 手臂轴 Arm axis | J4 | ±360° | ||||||||||||||||||||||

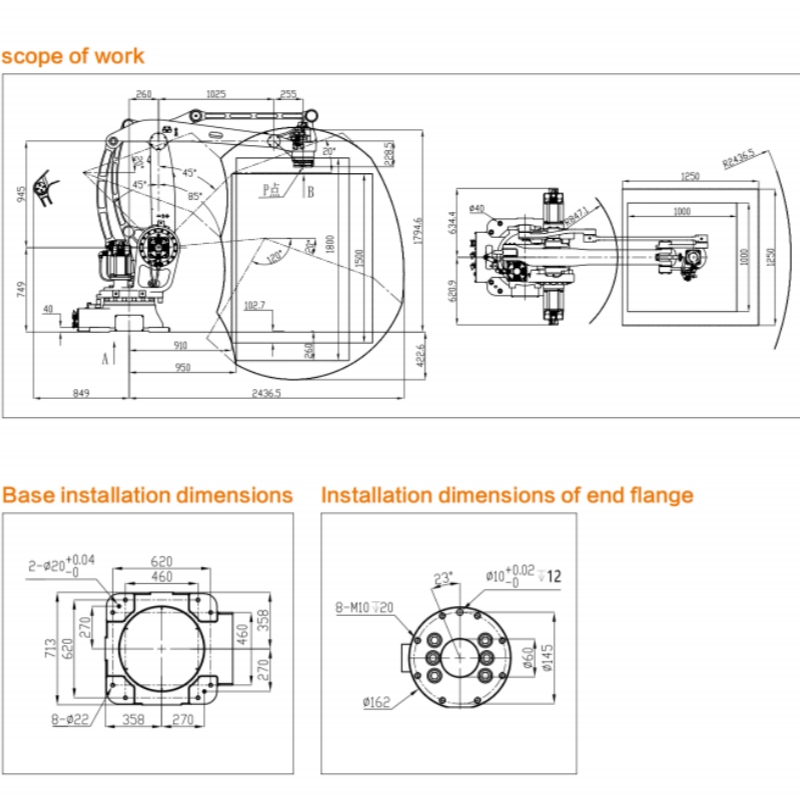

| 工作半径 Working radius | 2400mm | |||||||||||||||||||||||
| 最大速度 Maximum speed | 基本轴 Basic axis | J1 | 100°/S | |||||||||||||||||||||
| 位置重复精度 Position repetition accuracy | ±0.2mm | J2 | 104°/S | |||||||||||||||||||||
| 本体重量 Body weight | 1020KG | J3 | 104°/S | |||||||||||||||||||||
| 电源容量 Power capacity | 11KVA | 手臂轴 Arm axis | J4 | 290°/S | ||||||||||||||||||||
| 适用环境 Applicable environment | 0-45°C，20-80%RH（无结露现象） (No condensation phenomenon) | |||||||||||||||||||||||
| 安装方法 Installation method | 地面 ground | |||||||||||||||||||||||
| 防护等级 Protection level | 与IP54相当 Equivalent to IP54 | 主要用途 Main uses | 搬运、码垛、上下料 Handling, palletizing, loading and unloading | |||||||||||||||||||||
